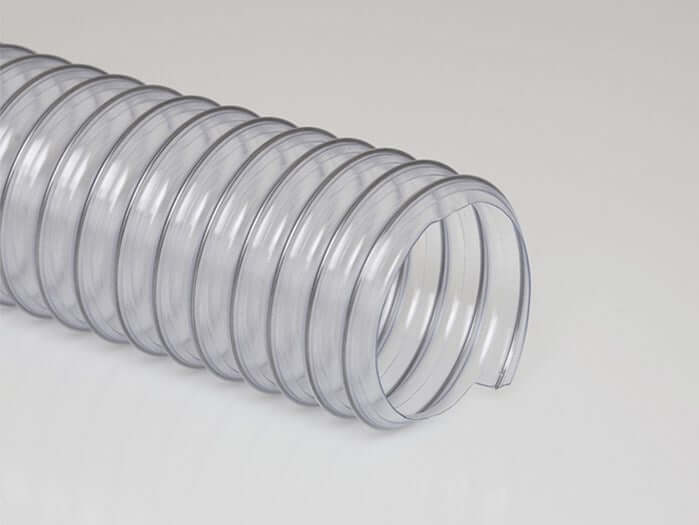

Flx-Thane LD-SD SS 316 Hose
Product details
- SKU WHFTLDSDS-03-25
- Low Temperature (°F) -65
- High Temperature (°F) 200
- Material Polyurethane
- Color Clear
- Helix Direction Right-Handed
- Handlings Air, Fumes, and Dust
- Applications Abrasion Resistant Applications, Dust Collection, Food Grade, Static Control, Vapor Recovery, Woodworking, Furniture Industry, and Wood Dust Collection
Light-Weight Static Dissipative Hose with Stainless Steel 316 Wire Helix
The Flx-Thane LD-SD SS 316 is a light-weight clear static dissipative polyurethane hose reinforced with a Stainless Steel 316 spring wire helix. It shares the same permanent, non-humidity dependent ESD protection as the standard LD-SD (surface resistivity 108–1010 Ohms/Square), but replaces the bronze-coated spring steel with SS 316 for superior rust resistance in corrosive or high-moisture environments. Manufactured with FDA acceptable materials. Wall thickness is .015" at 2" ID (.020" at 2.5" and above).
Where the LD-SD SS 316 Fits
This hose is the right call when the application needs static dissipation and the environment would corrode a standard bronze-coated wire helix — wet dust collection, chemical-adjacent air handling, washdown areas, or any setup where moisture and corrosive agents are part of the operating environment.
Sizing & Install Best Practices
Match inside diameter to your dust collector, vacuum system, or air handler inlet. The SS 316 helix adds rust resistance but does not change flexibility or compressibility compared to the standard Flx-Thane LD-SD — choose between them based on environment, not handling characteristics. For a heavier-wall static dissipative option, see the Flx-Thane SD Clear.
Light weight clear static dissipative polyurethane hose reinforced with a Stainless Steel 316 spring wire helix.
FEATURES:
• Great compressibility
• Great abrasion resistance
• Great rust resistance
• Superior chemical resistance
• Excellent flexibility
• Designed for applications with wide temperature ranges
• Ideal for light duty woodworking dust collection applications
• Permanent and non-humidity dependent ESD (electrostatic discharge) protection
• Surface resistivity level: 10⁸–10¹⁰ Ohms/Square
• Manufactured with FDA acceptable materials
• Wall Thickness = .015" (2" ID), .020" (2.5" ID & above)
Applications
The Flx-Thane LD-SD SS 316 is part of our selection for these applications:
